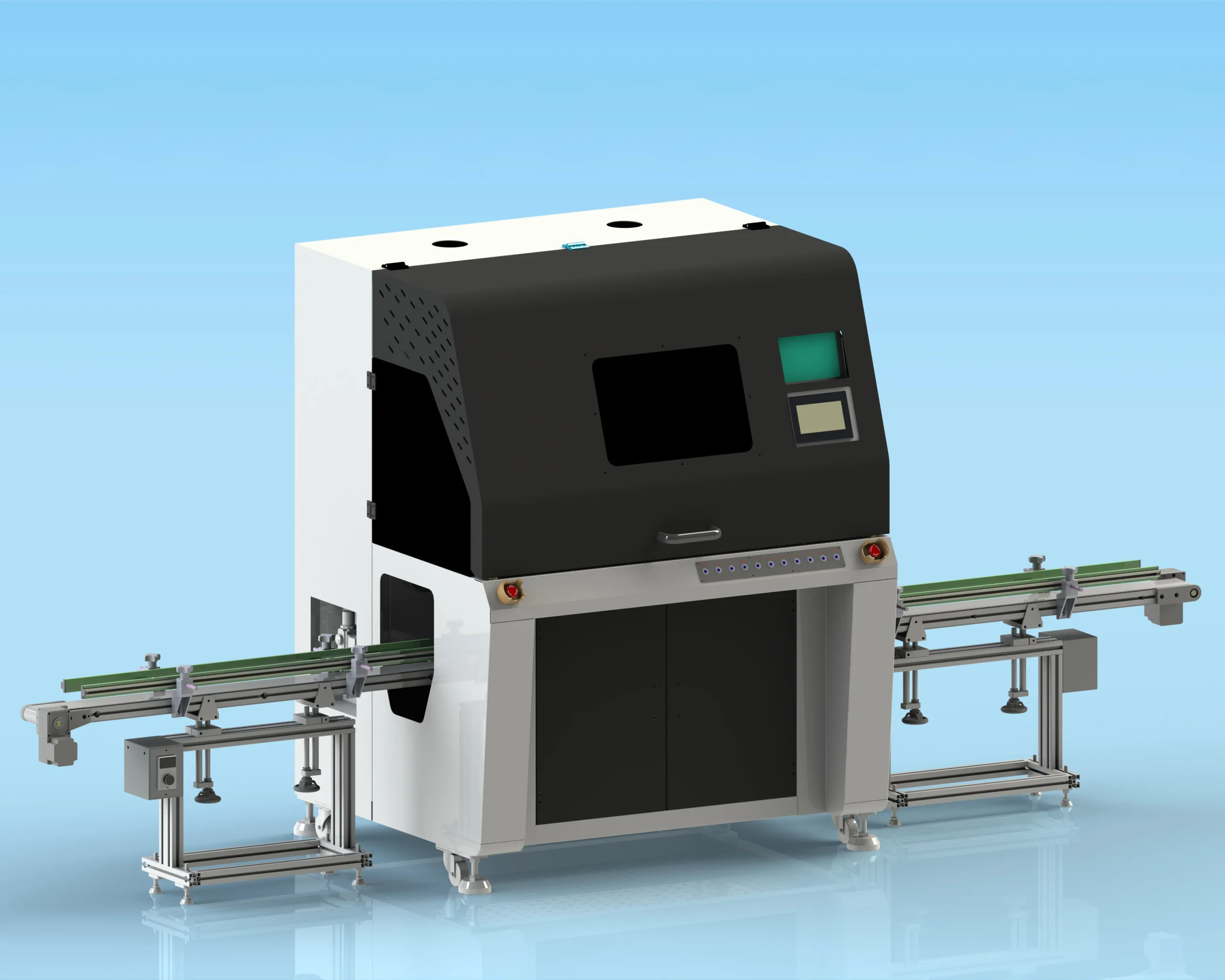

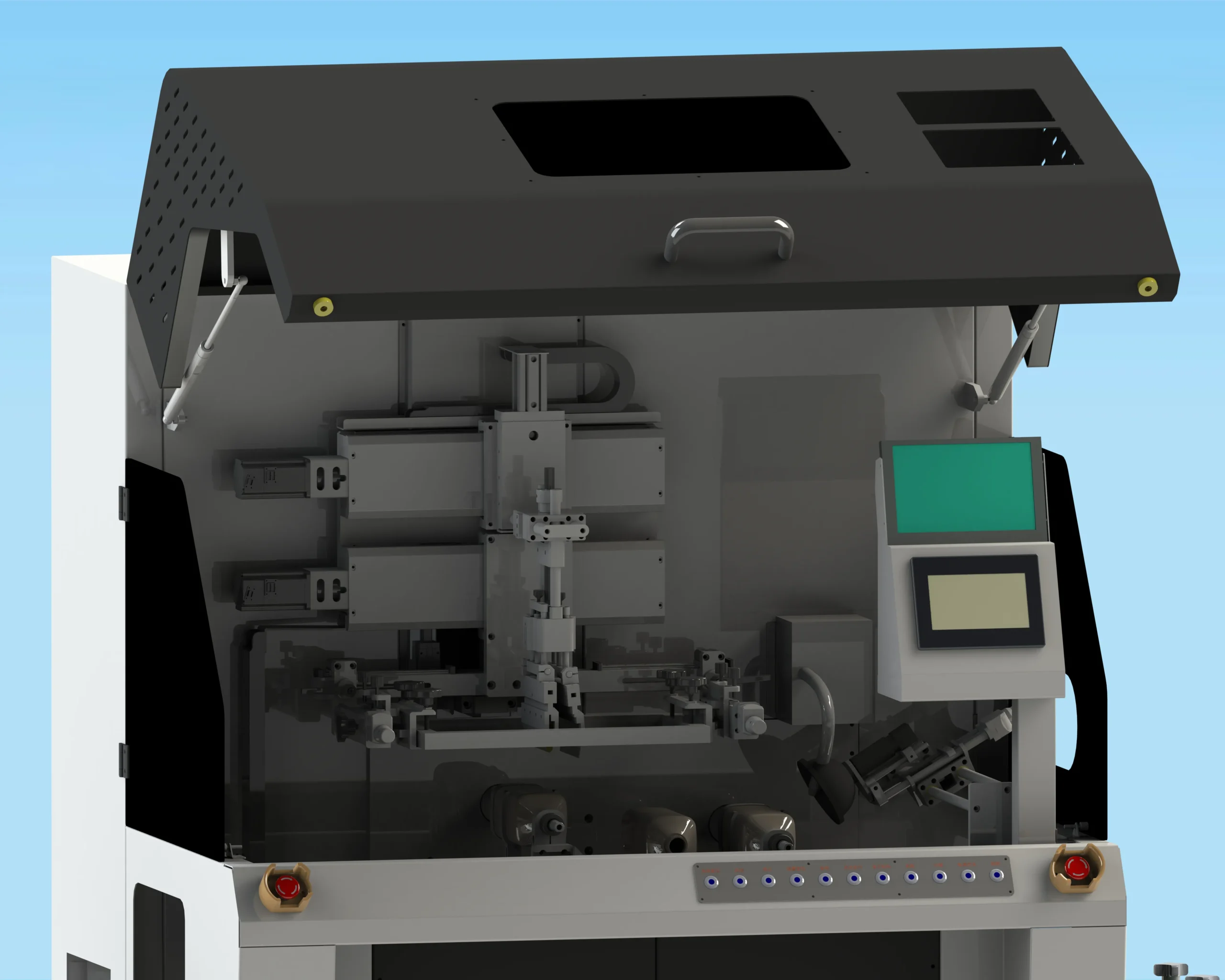

CNC Shuttle Screen Printing Machine

CS04 Automatic Screen Printing Machine

Key Features

• Servo-Driven Automatic Loading and Unloading
  Fully automatic product loading and unloading driven by servo motors for stable, consistent operation.
• CCD Vision + Servo Pre-Registration
  CCD vision positioning combined with servo control improves color-to-color registration accuracy for multi-color printing.
• Fully Servo-Driven Motion System
  A fully servo-controlled motion system simplifies machine setup and operation. Four-axis synchronized control enables precise, repeatable printing.
• Flame Surface Treatment
  Flame treatment improves ink adhesion and print durability on glass and plastic surfaces.
• Optional LED UV or Mercury UV Curing
  After screen printing, the machine can be equipped with either LED UV curing or conventional mercury UV curing, depending on the application.
• Ethernet-Connected Servo System & Remote Support
  Ethernet-connected servo drives support remote program debugging and maintenance. PLC control with a touchscreen HMI provides intuitive and easy operation.

Applications

The CS04 is designed for fully automatic multi-color screen printing on round, oval, square, and rectangular glass bottles and cosmetic containers.

Optional Configuration

• Air Blow or Vacuum Suction
  The fixture can be configured with either air blow or vacuum suction to improve product holding and positioning.
• CCD Color-Mark Registration
  An optional vision positioning system can detect the first-color registration mark and automatically align subsequent colors for accurate multi-color overprinting.

Technical Specifications
