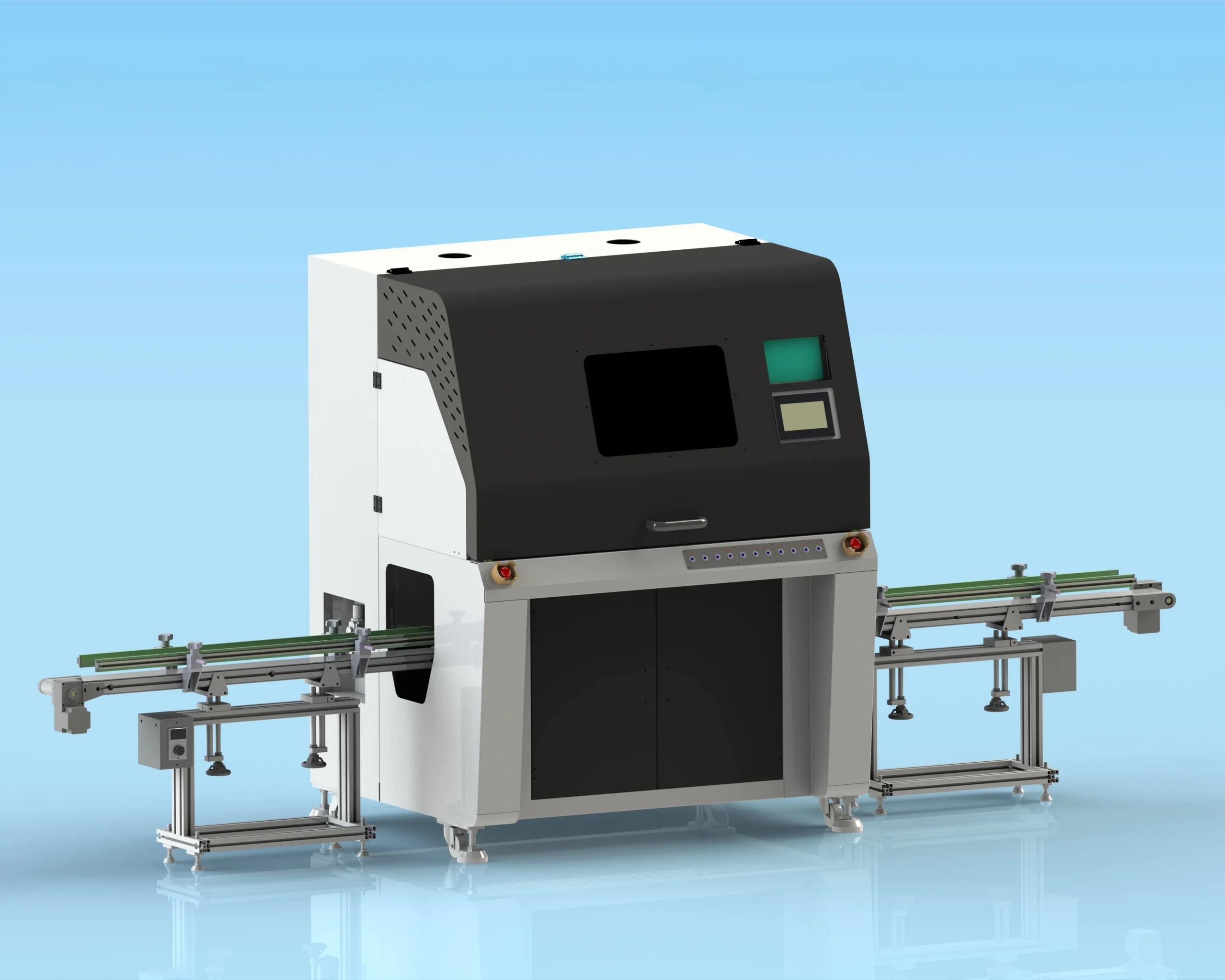

CNC Shuttle Labeling Machine

CT04 Automatic Hot Stamping Machine

Key Features

• Servo-Driven Automatic Loading and Unloading
  Fully automatic product loading and unloading with servo-controlled motion for stable and consistent operation.
• CCD Vision + Servo Pre-Registration
  CCD vision positioning combined with servo control improves hot stamping registration accuracy and ensures precise positioning.
• Fully Servo-Driven Motion System
  A fully servo-controlled motion system simplifies machine setup and operation, with four-axis synchronized control for precise and repeatable performance.

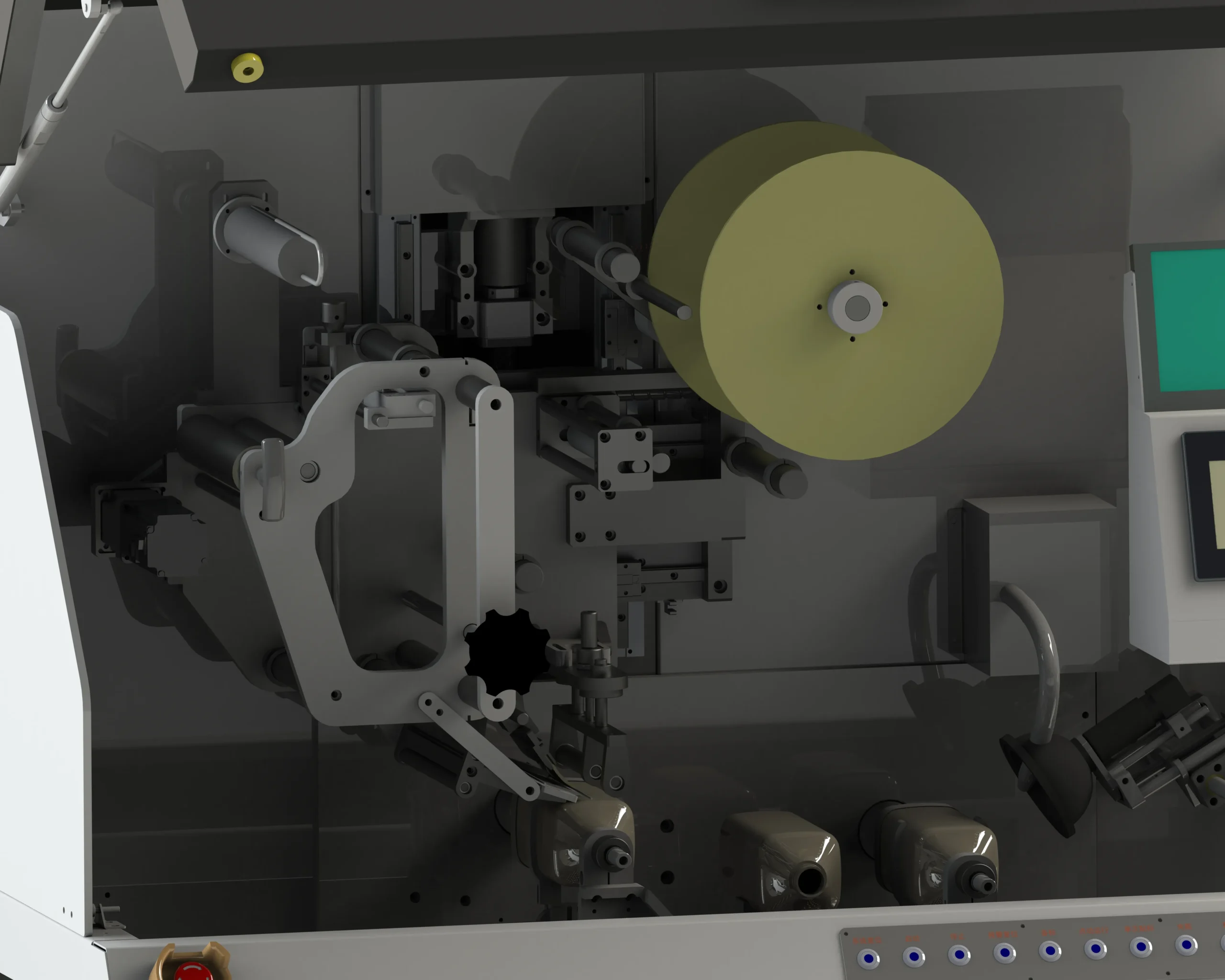

• Automatic Foil Feeding and Waste Foil Rewinding
  Automatic foil feeding and waste foil collection improve production efficiency. Feeding and rewinding parameters can be adjusted according to the application.
• Adjustable Stamping Pressure, Temperature and Dwell Time
  Hot stamping pressure, temperature, and dwell time can be adjusted independently for flexible process control and consistent results.
• Ethernet-Connected Servo System & Remote Support
  Ethernet-connected servo drives support remote program debugging and maintenance. PLC control with a touchscreen HMI provides intuitive and easy operation.

Applications

The CT04 is designed for fully automatic hot stamping on round, oval, square, and rectangular glass bottles and cosmetic containers.

It is suitable for decorative finishing applications requiring precise foil positioning and consistent hot stamping quality.

Optional Configuration

• Air Blow or Vacuum Suction
  The fixture can be equipped with air blow or vacuum suction to improve product holding and positioning.
• Vision-Based Foil Mark Registration
  An optional vision positioning system can detect the first stamping mark and automatically align subsequent stamping positions for multi-color or multi-pass hot stamping.

Technical Specifications
