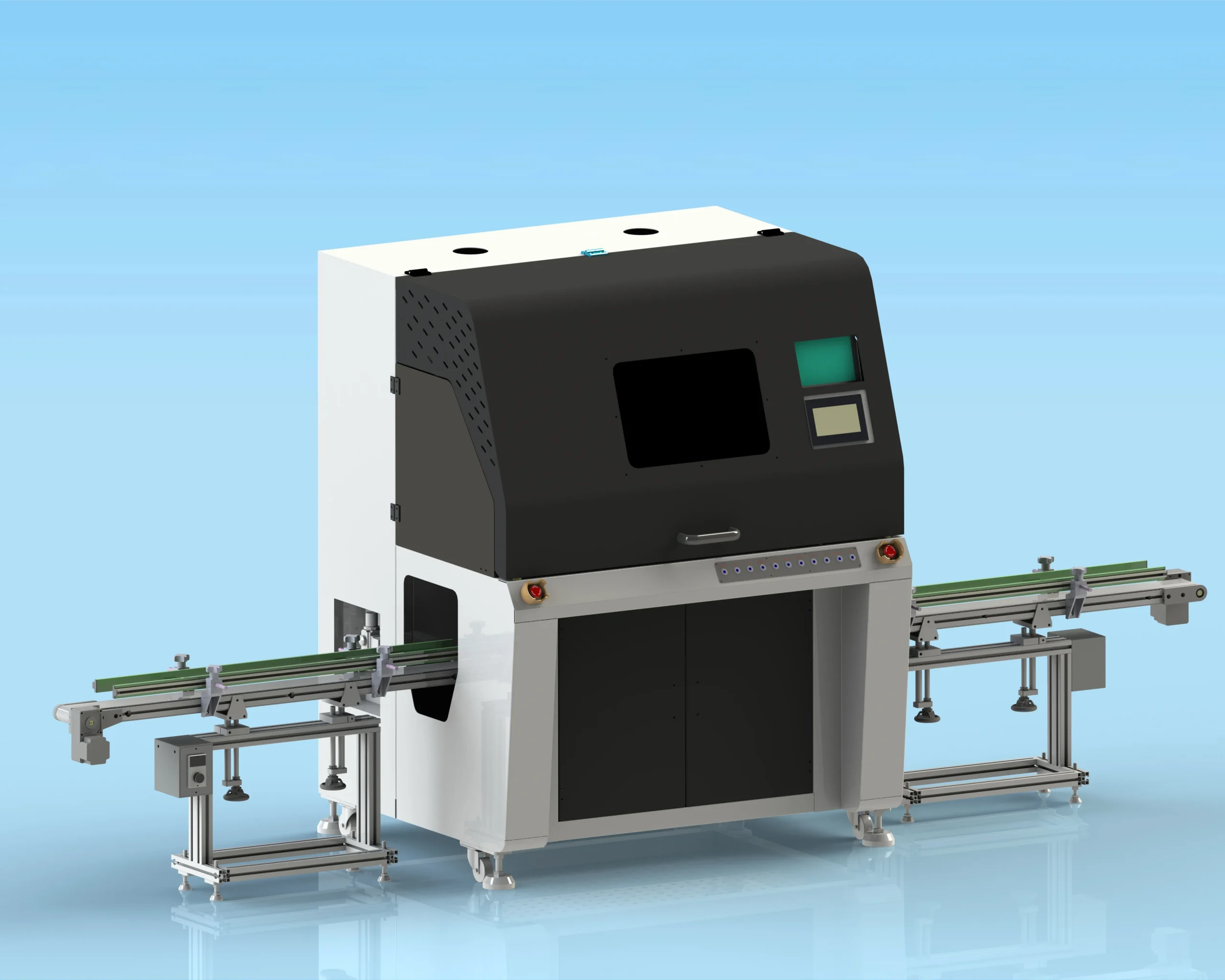

CNC Shuttle Hot Foil Stamping Machine

Key Features

• Advanced electrical control system integrating PLC, touchscreen HMI, CCD vision inspection, and a German Leuze label sensor for reliable and stable long-term operation.
• Smart control and automatic optical tracking help prevent labeling when no product is detected. The system automatically detects missing labels and corrects the labeling position to reduce label misapplication and material waste.
• Optional configurations: hot coding/printing, automatic product discharge, and automatic product feeding.

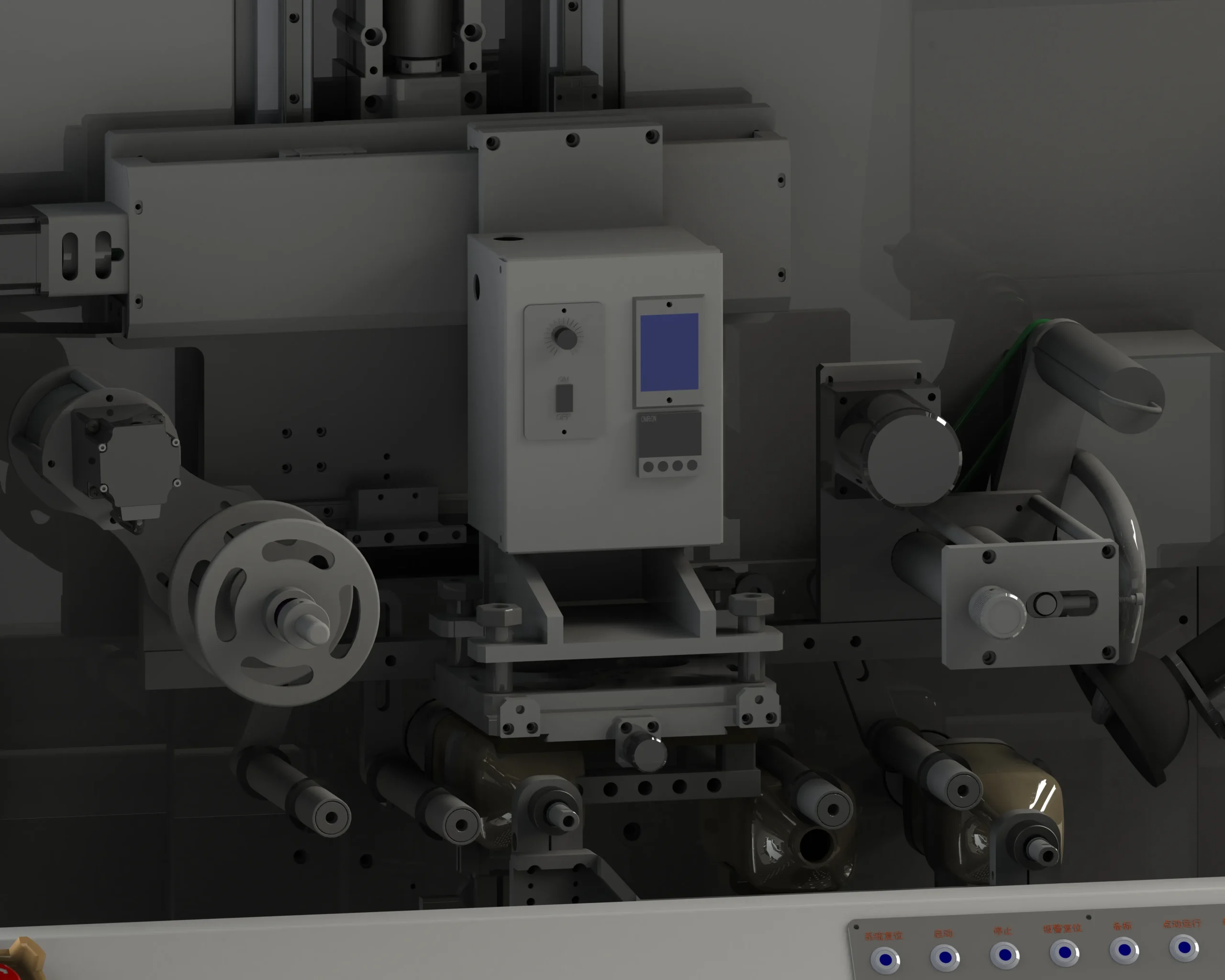

Production Process

1. Manual product loading
   The operator arranges the products on the infeed conveyor in the required orientation.
2. Robotic product loading
   A robotic arm transfers the products from the conveyor to the product fixture.
3. Static elimination
   The products pass through an anti-static treatment process before labeling.
4. CCD vision positioning
   The CCD vision system detects the product position and identifies the required starting point for label application.
5. Automatic labeling
   The labeling system applies the self-adhesive label automatically. The integrated German Leuze sensor can also detect transparent labels.
6. Automatic product unloading
   The robotic arm transfers the labeled products from the fixture to the outfeed conveyor.

Applications

The CB04 is designed for front, rear, 360°, and 180° self-adhesive labeling of:

• Cylindrical glass bottles
• Oval glass bottles
• Square glass bottles
• Plastic containers

It is suitable for a wide range of packaging applications requiring precise and consistent automatic label placement.
